支持系统：Windows.MAC

音源厂商：https://vstbuzz.com/deals/60-off-vector-x-bundle-by-synth-magic/

使用采样器：Kontakt 7. Kontakt 8加载

文件大小：6.3GB

为插件时代精心重现的传奇合成器！
“Vector X Bundle”基于 Sequential Circuits Prophet VS 合成器，Brian Eno、Trent Reznor、Apollo 440、Depeche Mode、Vince Clarke、Kraftwerk、Vangelis、Erasure 和电影制作人/作曲家 John Carpenter 等人都曾使用过该合成器。

此捆绑包包含以下功能：

基于传奇的 Sequential Circuits Prophet VS
4 卷中的 6GB 样本内容
合成器、调制、效果、性能和琶音器部分
全新定制波形浏览器
仅第 1 卷就有 150 个出色的预设！
“Vector X Bundle”将为您提供美妙的 Prophet VS Choir 和 Filmscore 声音。还有大量粗犷的合成器声音、平滑的风琴、第五层堆叠、模拟波形、抽象音调等！

为现代数字工作室重新发明独一无二的合成器
乐器概述

“Vector X”由 3 个独立部分组成：
主 Vector x 合成器部分
调制部分
效果/控制部分

主页
它有一个大蓝屏，可以直观地显示可用的波形。

选择波形 - Vector X 有两个合成器部分，分别称为 Vector 1 和 Vector 2。要为矢量选择波形，只需单击要为其选择波形的矢量的矢量波形窗口即可。单击波形窗口后，大蓝屏将显示波形。要选择波形，只需单击相关波形（矢量波形窗口现在将填充您选择的波形名称）

使用滤波器 - 合成器部分包含 Vector 1 和 Vector 2，每个矢量都有用于放大器和滤波器的 ADSR 包络。滤波器部分包含低通 (LP)、带通 (BP) 和高通 (HP) 滤波器，可通过滤波器按钮进行选择 - 关闭按钮可绕过所有滤波器。滤波器还与滤波器包络相连，包络量为双极（中央拨盘位置为 0 量）

粗调和微调 - 粗调拨盘旨在以半音为单位向上或向下调音。转动粗调拨盘时，当前间隔将显示为 Kontakt 窗口底部的文本。这提供了间隔的视觉表示。然后可以使用微调以非常小的量向上或向下移动音调

V-Mix 滑块 - 每个向量都有自己的音量控制 - 每个向量的混合也可以通过沿 X 轴移动的 V-Mix 滑块进行控制（因此称为 Vector X）

平移控制 - 调整向量的左右平移位置（这是手动设置）。 Pan LFO 是自动平移量，是双极的（中心位置为 0 量）。Pan SPD 是自动平移速度

正常样本从 C1 运行到 C6（蓝色键）。黄色键是琶音器支持键，用于允许琶音器利用可能存在于正常音符范围之上的一系列音符。

调制页面
此页面用于路由各种 LFO 和调制/表达控件。

滤波器截止 LFO - 它有 5 种波形，可以通过单击红色 LED 读数并上下移动鼠标指针（同时按住鼠标按钮）进行更改。如果 LFO 形状设置为方波，则右侧的蓝色拨盘可以调整方波的宽度。宽度也可以通过设置触后 > 方波宽度滑块通过触后控制。
音高 LFO - 与上述控件相同，但路由到矢量音高。触后 LFO 量和调制轮 LFO 量可用于添加颤音或极端音高调制效果，具体取决于拨盘设置。

效果和控制页面

此页面提供添加效果和调整各种控制器设置的选项。

效果
合唱 - 包括深度、速度、相位和返回控制
移相器 - 包括深度、速度、相位、返回和反馈控制
镶边 - 包括深度、速度、相位、返回和反馈控制
延迟 - 包括深度、速度、相位、返回和反馈控制
混响 - 是一种卷积类型，会消耗大量 CPU - 如果在较旧的计算机上运行 Vector X，您可以通过关闭卷积混响来减少 CPU 负载

性能控制
速度滑块 - 每个向量都有自己的速度滑块。这允许您的演奏风格控制音量。将拨盘移向 Vel 会增加速度
琶音器 - 要激活琶音器，请按开/关按钮。 Hold 按钮用于在释放琴键时保持琶音器运行。如果关闭 Hold，则当您释放键盘上的琴键时，琶音器将停止。可用的控件包括持续时间、Arp 速率和 Arp 模式
单声道模式 - 用于使 Vextor X 表现得像单声道合成器
滑音 - 自动允许仅在演奏 Legato 时应用滑音

A Legendary Synth Expertly Recreated For The Plugin Age!
“Vector X Bundle” is based on the Sequential Circuits Prophet VS synth, as used by the likes of Brian Eno, Trent Reznor, Apollo 440, Depeche Mode, Vince Clarke, Kraftwerk, Vangelis, Erasure and filmmaker/composer John Carpenter amongst others.

This bundle includes the following features:

Based on the legendary Sequential Circuits Prophet VS
6GB of sample content in 4 Volumes
Synth, Modulation, Effects, Performance & Arpeggiator sections
All new customised waveform browser
150 great presets in Vol 1 alone!
“Vector X Bundle” will provide you with the beautiful Prophet VS Choir and Filmscore sounds. There’s also plenty of Gritty Synth Sounds, Smooth Organs, 5th Stacks, Analogue Waveforms, Abstract Tones and more!

Reinventing A One-Of-A-Kind Synth For The Modern Digital Studio
Overview Of The Instrument

“Vector X” consists of 3 separate parts:
The main Vector x synth section
The Modulation section
The effects/control section

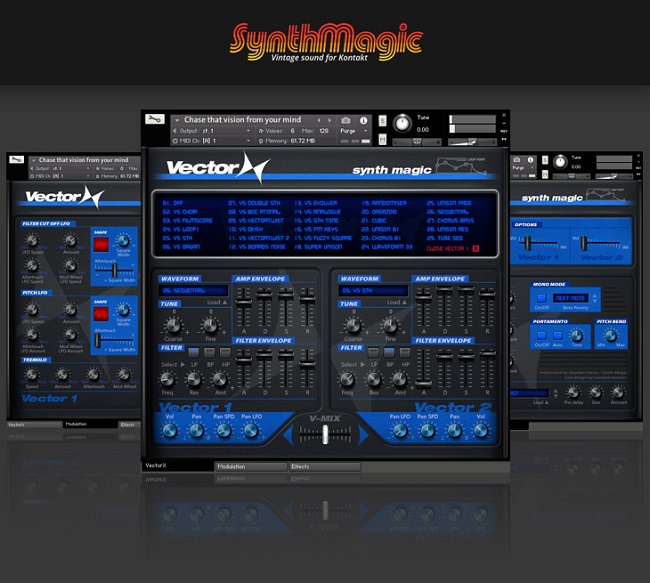

The Main Page
This has a large blue screen which allows for a visual representation of the available waveforms.

Selecting Waveforms – Vector X has two synth sections called Vector 1 and Vector 2. To select a waveform for a vector, you simply click in the vector waveform window of the vector you wish to select a waveform for. Once the waveform window is clicked, the big blue screen will populate with waveforms. To select a waveform, simply click on the waveform in question (The vector waveform window will now fill with the waveform name you have selected)

Using Filters – The synth section contains Vector 1 and Vector 2 and each vector has ADSR envelopes for amp and filters. The filter section contains a Low Pass (LP), a Band Pass (BP) and Highpass (HP) filter which are selected via the filter buttons – Switching buttons off bypasses all filters. The filter is also linked to the filter envelope and envelope amount is Bi-Polar (central dial position is 0 amount)

Coarse Tune & Fine Tune – The coarse tune dial is designed to step the tuning up or down in semitones. When turning the coarse tune dial the current interval will be displayed as text at the bottom of the Kontakt window. This gives a visual representation of the interval. Fine tune can then be used to shift the tune up or down in very small amounts

V-Mix Slider – Each Vector has it’s own volume control – The blend of each vector can also be controlled via the V-Mix slider which moves in the X-axis (hence the name Vector X)

Pan Controls – Adjust the left and right pan position of the vector (This is a manual setting). Pan LFO is the automatic pan amount and is Bi-polar (Centre position is 0 amount). Pan SPD is auto pan speed

Normal samples run from C1 to C6 (Blue keys). Yellow keys are Arpeggiator support keys and are used to allow the arpeggiator to utilise a range of notes that may exist above the normal range of notes.

The Modulation Page
This page is used to route the various LFO’s and modulation/expression controls.

Filter Cut Off LFO – this has 5 wave shapes and can be changed by clicking on the red LED readout and moving your mouse pointer up or down (whilst holding your mouse button). If the LFO shape is set to square then the blue dial to the right can adjust the width of the square wave. The width can also be controlled via aftertouch by setting the Aftertouch > Square width slider.
Pitch LFO – the same controls as above but routed to the Vector Pitch. Aftertouch LFO Amount and Modwheel LFO Amount can be used to add vibrato or extreme pitch modulation effects depending upon dial settings.

Effects & Controls Page
This page provides options for adding effects and tweaking various controller settings.

The Effects
Chorus – includes controls for Depth, Speed, Phase and Return
Phaser – includes controls for Depth, Speed, Phase, Return and Feedback
Flanger – includes controls for Depth, Speed, Phase, Return and Feedback
Delay – includes controls for Depth, Speed, Phase, Return and Feedback
Reverb – is a convolution type and can consume quite a lot of cpu – If running Vector X on older computers, you can reduce cpu load by turning the Convolution reverb off

Performance Controls
Velocity Sliders – each vector has its own velocity slider. This allows for your playing style to control volume. Moving the dials towards Vel increases velocity
Arpeggiator – to activate the arpeggiator press on/off button. The Hold button is used to keep the arpeggiator running when keys are released. If hold is off, when you release the keys on your keyboard, the arpeggiator will stop. Available controls include Duration, Arp Rate and Arp Pattern
Mono Mode – this is used to make Vextor X behave like a monophonic synth
Portamento – auto allows for portamento to be applied only when playing Legato
