Smaart v8是迄今为止Smaart最强大、最灵活、适应性最强的版本。从工作室到体育场，从商店到展览，Smaart v8适合任何测量情况的需求。借助Smaart v8，我们打破了单一窗口、固定GUI的世界，可以更好地控制您的软件环境，使您能够适应和扩展Smaart，以更好地匹配您的特定应用程序。
Smaart v8提供了管理数据和测量环境的新方法、新的多窗口功能、新的基于标签的界面、在平板电脑和触摸屏电脑上使用的新增功能、计算机对计算机API功能等等。
更简单、更直观的测量配置
测量配置过程已经更新，以提供更简单、更直观的工作流程——添加了自动测量创建和管理功能，以简化配置并支持通常是运营必需品的"即时构建"过程。
明确地：
-新的程序工作流程将带您完成设备选择/配置，并自动创建频谱测量
-设备和测量配置通过单个窗口进行管理
-在I-O配置中输入计量，在创建测量值之前检查您的输入
-创建传递函数测量现在会自动创建相应的频谱贡献者。
-从主界面动态创建测量
基于选项卡的界面
许多用户表示希望有一个基于选项卡的界面，可以在多个工作区之间进行配置和切换，因此我们从v7扩展了基本的"测量组"范式，现在将我们的配置组织成选项卡，其中不仅包括配置的测量值，还包括布局和绘图视图。
多窗口功能
我们增加了驱动多个窗口的能力，每个窗口都包含自己的一组选项卡式工作区。这就像能够同时运行Smaart的多个会话。
隐藏/显示界面控件
我们从许多用户那里听说，他们真的很喜欢Smaart v.7 Di中提供的隐藏/显示数据栏功能，因为它使他们能够最大限度地扩大绘图区域，尤其是在放映期间。因此，我们在v8中进一步发展了这一概念，并将其应用于所有界面控制元素
命令栏
Smaart在平板电脑/触摸屏电脑上的使用越来越多，使用热键命令变得复杂。为了解决这个问题，我们添加了一个命令菜单和一个用户可配置的大型触摸友好按钮命令栏，可用于调用Smaart的任何基于键盘的热键命令。
改进的数据存储和APL
对于静态数据，我们彻底改革了跟踪存储过程，以便更好地直接访问捕获的跟踪的较大文件结构，而不会在需要时弄乱活动内存空间，试图将所有内容加载到RAM中。
新的活动绘图图例（APL）窗口详细介绍了活动/选定绘图的内容，显示了实时和静态数据轨迹的名称、颜色和轨迹偏移，并提供了隐藏/显示轨迹的控件。
宽带计量
长期用户请求的功能是能够连续查看输入信号电平，以及同时监测多个输入的SPL和LEQ等参数。为此，我们创建了"宽带仪表"窗口。此无模式窗口可以配置为通过简单的网格配置过程监视Smaart的任何输入信号。
集成Smaart I/O控制
Smaart I-O增益和幻像功率的控制现在直接集成到Smaart v8接口中。
斯马尔特至斯马尔特API
Smaart的集成API允许Smaart v8的任何副本作为Smaart v7的任何其他副本的主机，这意味着您可以创建一个装备，其中一台计算机获取输入信号并执行测量计算，而另一台计算机作为客户端并远程访问测量数据。然后，此功能允许您的v8测量环境扩展，不仅跨多个监视器，而且跨多个计算
Smaart v8 is the most powerful, flexible and adaptable version of Smaart to date. From studio to stadium, shop to show, Smaart v8 fits the needs of any measurement situation. With Smaart v8, we are breaking out of the single window, fixed GUI world to allow increased control over your software environment, allowing you to adapt and expand Smaart to better match your specific applications.
Smaart v8 offers new ways to manage your data and your measurement environment, new multi-window capability, a new tab-based interface, added functionality for use on tablets and touch screen computers, computer-to-computer API capability and much, much more.
Easier, More Intuitive Measurement Configuration
The measurement configuration process has been updated to provide an easier, more intuitive workflow – adding automatic measurement creation and management functionality to streamline configuration and support a "build-on-the-fly" process that is often an operational necessity.
Specifically:
- New program workflow takes you through device selection/configuration and automatically creates Spectrum measurements
- Device and measurement configuration is managed through a single window
- Input metering right in the I-O Config, check your inputs before you even create measurements
- Creating a Transfer Function measurement now automatically creates the accompanying Spectrum contributors to it.
- Measurement creation on-the-fly from the main interface

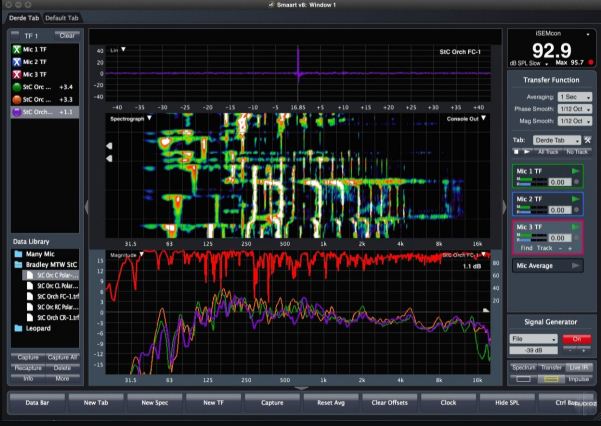

Tab-Based Interface
Many users expressed a desire for a tab-based interface where one could configure and switch between multiple workspaces, so we have expanded the basic "measurement group" paradigm from v7 and now organize our configurations into tabs which include not only the configured measurements, but also the layout and plot view as well.
Multi-Window Capability
We have added the ability to drive multiple windows, each containing its own set of tabbed workspaces. It is like being able to run multiple sessions of Smaart simultaneously.
Hide/Show Interface Controls
We heard from many users that they really liked the hide/show data bar feature available in Smaart v.7 Di because it gave them the ability to maximize the plot area, especially during show time. So we took that concept a step further in v8 and applied it to all interface control elements
Command Bar
The increased use of Smaart on tablet/touch screen computers complicated using Hot-Key commands. To address this, we added a command menu and a user-configurable command bar of large, touch-friendly buttons that can be used to call any of Smaart's keyboard-based, Hot-key commands.
Improved Data Storage & APL
For static data, we have overhauled the trace storage process to allow for better direct access to your larger file structure of captured traces, without cluttering up active memory space trying to keep everything loaded in RAM in case you need it.
The new Active Plot Legend, or APL, window details the contents of the active/selected plot, showing the names, colors and trace offsets of Live and static data traces – as well as providing the controls for hiding/showing the traces.
Broadband Metering
A long-time user requested feature is the ability to continuously view input signal levels, as well as monitor parameters such as SPL and LEQ for multiple inputs simultaneously. For this we created the Broadband Meters window. This mode-less window can be configured to monitor any of Smaart's input signals via a simple grid configuration process.
Integrated Smaart I-O Control
Control for the Smaart I-O gain and phantom power are now integrated directly into the Smaart v8 interface.
Smaart-to-Smaart API
Smaart's integrated API allows any copy of Smaart v8 to act as a host to any other copy of Smaart v8, meaning you can create a rig with one computer acquiring the input signals and performing the measurement computations, while another acts as a client and remotely accesses the measurement data. This capability then allows your v8 measurement environment to be spread, not just across multiple monitors, but across multiple compute |
